Debugging Bluetooth on iOS

  • By Stefan
  • on April 20, 2022

While debugging or reversing Bluetooth applications/comms, it is helpful to have a communications trace. Without the need of a proxy, one can activate the trace function of their mobile device.

Motivation

During the reversing of the Grill 5.0 BT thermometer, I wanted to implement the full protocol stack, so after having reversed the first part, I went for full comms. After searching for BTLE MitM proxies and finding none that could work well, I was about to create my own, but most mobiile devices have a trace function built in. Which might just delay my plans on creating my own MitM proxy.

Prerequisites

  • iOS Device
  • macOS Device
  • Bluetooth DUT

Apple iOS Configuration Profile - Bluetooth Trace (Note: Generated profile is valid for 4 days and every downloaded profile needs to be activated manually within Settings)

Xcode installation and Apple Developer - Additional Tools for Xcode - Packet Logger:

File Tree - Packet Logger App location
File Tree - Packet Logger App location

Instructions

Install and enable configuration profile from the link above on your test iOS device and download the Packet Logger for your Xcode version.

  • Connect your iOS device via USB
  • Power on your DUT
  • Open Packet Logger
  • Packet Logger: File -> New iOS Trace
  • iOS Device: Enable Bluetooth and start corresponding DUT App
  • Filter for DUT and Packet Types

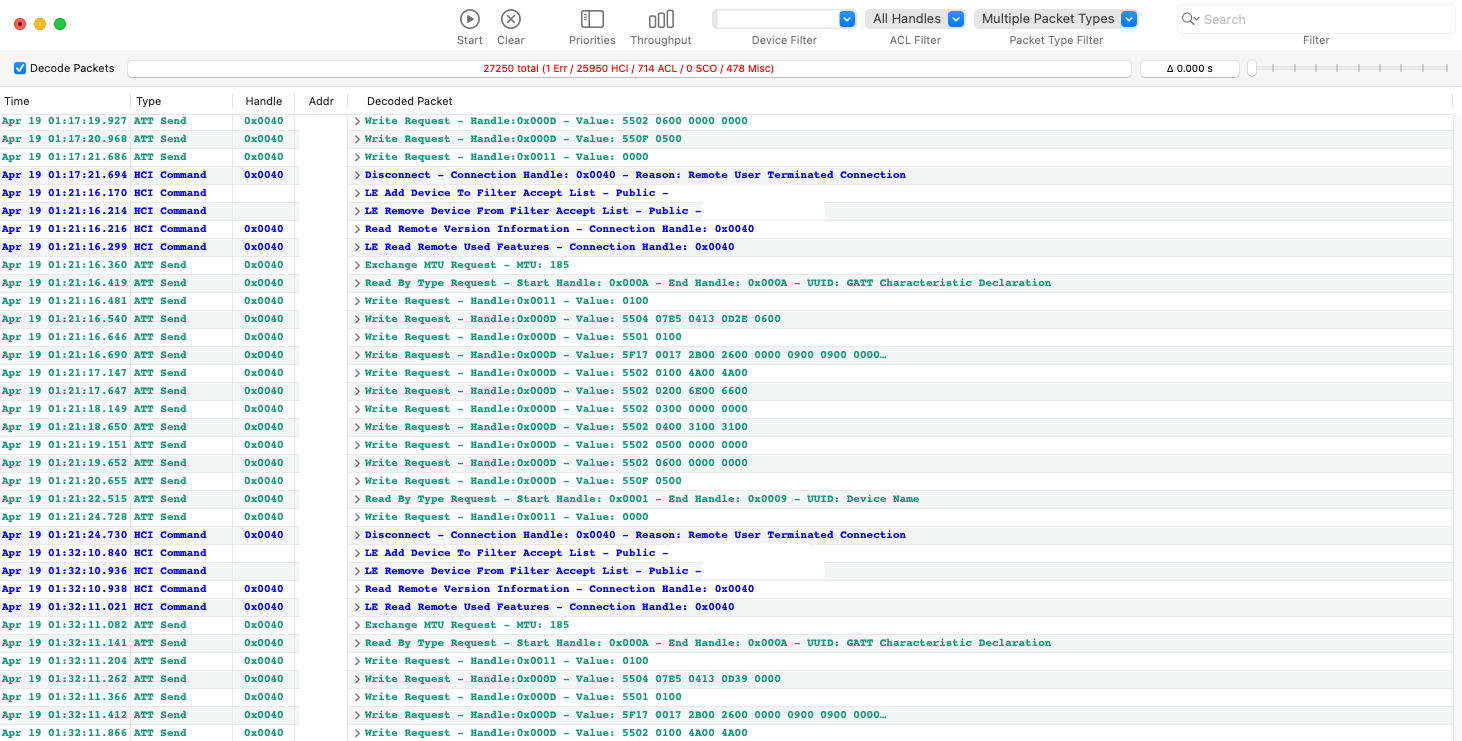

Live Packet Logger Trace
Live Packet Logger Trace

  • Profit.
